Philips

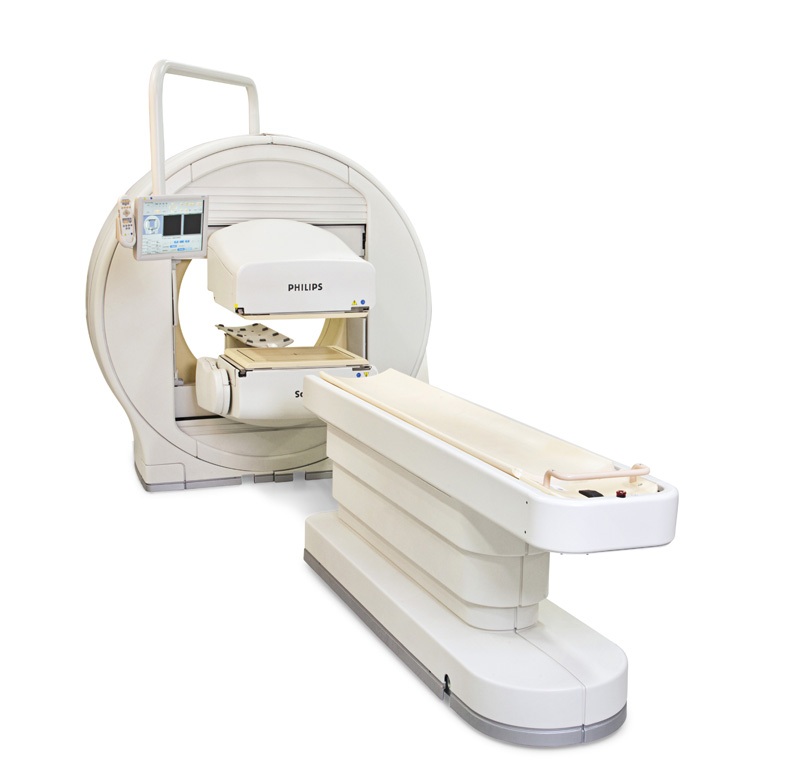

PHILIPS BRIGHTVIEW FEATURES

59 Photo-multiplier tubes interfaced to 59 A/D Converters
Dual NaI, 54 cm x 40.6 cm (21.25″ x 16″) FOV detectors, 9.5 mm (3/8″) thick crystal
Enhanced resolution and uniformity detector specifications
Energy independent performance up to 300 keV
Useful detector energy range: 56 to 662 keV
Digital real-time energy, linearity, and uniformity correction
Automatic, single button touch for bed imaging, quality control, upright imaging, and other positions.
CardioTrac: Automated cardiac setup and with tracking zoom electronics
Gantry aperture of 96.5 cm (38 inches) for imaging large patients
LCD touch screen camera interface on the gantry
Ergonomically designed, wireless (RF) hand controller
Caudal-cephalic tilt- +/- 15 degrees perpendicular to the axis of rotation
BodyGuard automatic body contouring for SPECT and TB applications
Patient table weight limit: 450 lbs.
Smart Step: Provides tremendous workflow efficiency
Up to 16 energy windows
Basic Concurrent Imaging
48.3 cm (19″) Flat-panel (wall mounted or cart-based)

phillipsadac-forte-new-crop 0

PHILIPS/ADAC FORTE FEATURES

Two (2) matched detectors for increased throughput and superior image quality
Two (2) 3/8” crystals with 20” x 15” large field of view (LFOV) detectors
Fifty-five (55) high-resolution photomultiplier tubes per detector
High-performance detector electronics providing excellent resolution
Dedicated maintenance and tuning process for stability and reliability
Auto gain, energy, linearity, and corrections
ColliMATE automated collimator exchanger
A full complement of clinical software for nuclear medicine & nuclear cardiology
Minimum room dimensions: 13’ x 18’
Patient table weight limit: 400 lbs

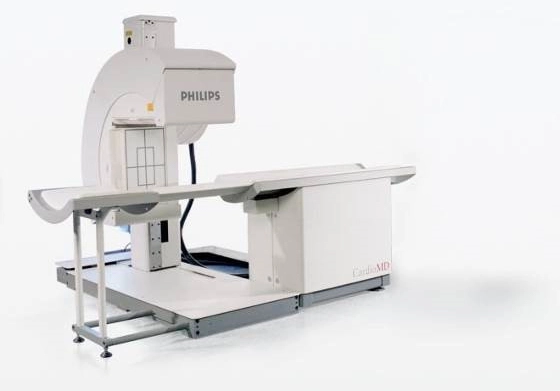

Fixed 90-degree detectors
90 degree dual detector configuration for increased throughput and superior image quality
Two (2) 3/8” crystals with 14.6” x 8.5” field of view (FOV) detectors
Twenty-four (24) high-resolution photomultiplier tubes per detector
High-performance detector electronics providing excellent resolution
Auto gain, energy, linearity, and uniformity corrections
Preprogrammed gantry motions with digital LED displays
A full complement of clinical software for nuclear medicine & nuclear cardiology
Compact integrated design to fit into a 10’ x 11’ room (supine/prone long table)
Dedicated maintenance and tuning process for stability and reliability
Patient table weight limit: 400 lbs
